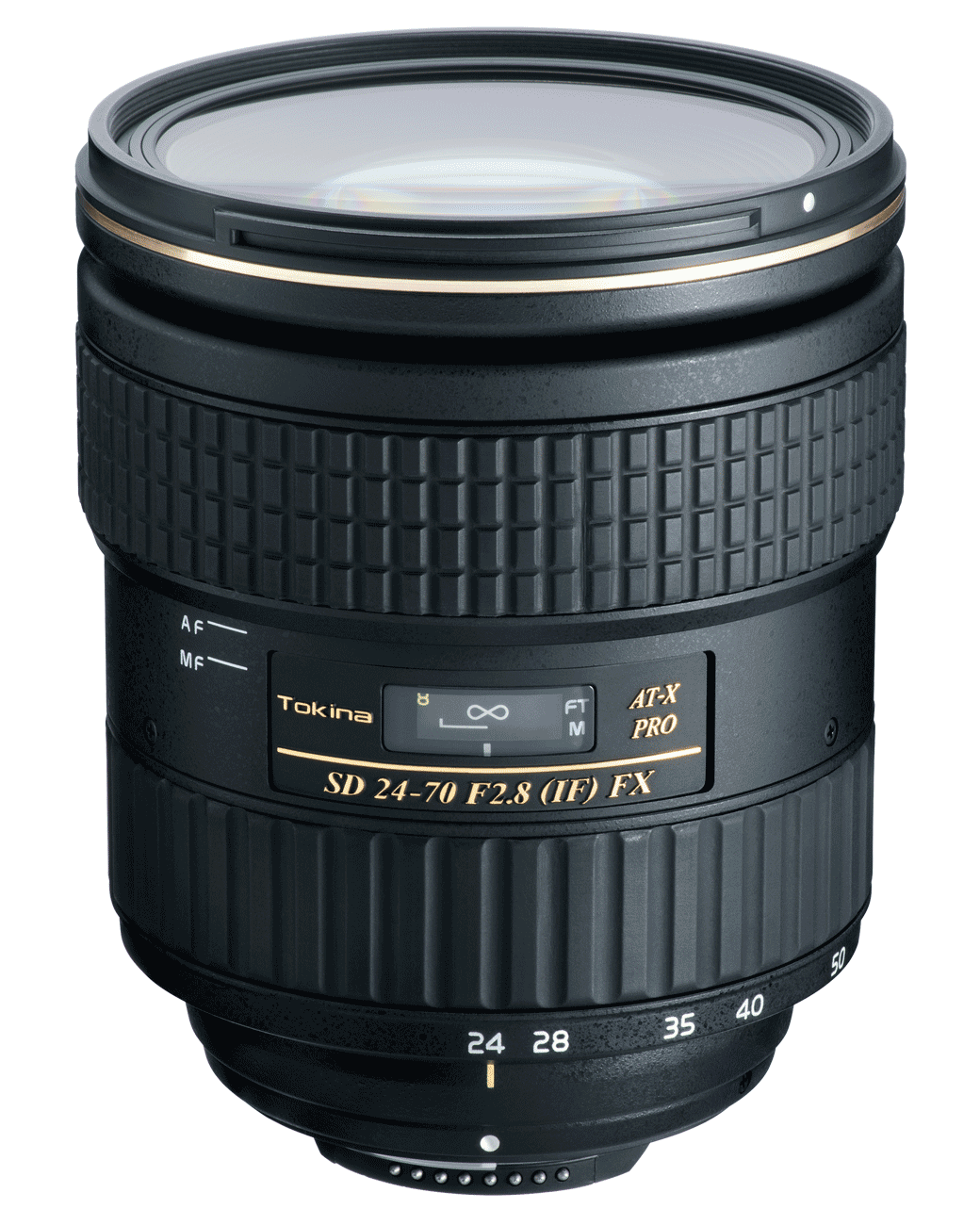

Tokina AT-X 24-70mm f/2.8 PRO FX

AT-X 24-70 F2.8 PRO FX

Wide-Standard Zoom
24-70mm f/2.8 AF
Mounts: Canon EF, Nikon F
Add to compare
Instruction Manual   PDF, 1.28 Mb
Full Frame
Sensor Size
82mm
Filter Size
1010g
Weight
Accessories
Aspherical Optics Super Low Dispersion Glass Internal Focus System Floating Element System Multi-Coating One Touch Focus Clutch Mechanism
Instruction Manual   PDF, 1.28 Mb
Description
Specifications
Gallery
Video
Reviews
Ambassadors
Description

The Tokina AT-X 24-70mm f/2.8 PRO FX lens gives photographers with full frame Canon and Nikon camera bodies a 24mm wide-angle to 70mm moderate telephoto lens with a fast f/2.8 aperture at an affordable price.

Aspherical and Super-low Dispersion glass elements

The new groundbreaking proprietary optical design uses three precision molded all-glass aspherical lens elements to achieve excellent contrast, sharpness, and corrects for spherical aberrations. One of these elements is very special and difficult to manufacture. G09, is made from Super-Low Dispersion (SD) glass and is a large sized aspherical element.

These lens elements also yield even illumination across the whole image sensor.

The Tokina 24-70mm lens also uses three SD (super-low Dispersion, “FK01” and FK03”) glass elements in the rear groups to control chromatic aberrations.

All these specialized lens elements work in consort to yield maximum resolution to match the 50-megapixel DSLR cameras entering the market.

The fast constant f/2.8 aperture makes viewing and auto focusing possible in very low light situations while keeping some flexibility for setting the shutter speed.

SDM motor

In addition to excellent optics, the lens incorporates a fast moving SDM (Silent Drive-Module) motor to greatly reduce AF noise making it one of Tokina’s quickest and quietest auto-focusing lenses to date.

One-Touch Focus Clutch

Tokina’s exclusive One-touch Focus Clutch Mechanism allows the photographer to switch between AF and MF simply by snapping the focus ring forward for AF and back toward the lens mount for manual focusing.

Specifications
General info
Brand
Tokina
Product Family
Lens
Model
AT-X 24-70 F2.8 PRO FX
Model Description
Tokina AT-X 24-70mm f/2.8 PRO FX
Series
AT-X PRO
Mount
Canon EF, Nikon F
Type
Wide-Standard Zoom
Color
Black
Country of Origin
Japan
Main specifications
Focal Length
24-70mm
Maximum Aperture
f/2.8
Minimum Aperture
f/22
Automatic Aperture
Yes
Manual Aperture Ring
No
Angle of View
84°-34°29'
Minimum Focusing Distance
0.38m
Macro Ratio
1:4.73
Focusing Mode
Automatic
Manual Focusing Ring
Yes
Autofocus Switch
Clutch Ring
Focusing Type
Internal Focus
Sensor Size
Full Frame
Filter Size
82mm
Multi-coating
Yes
Construction
Construction E/G
15 Elements in 11 Groups
Aperture Blades
9
Moisture Protection
Yes
Electrical Contacts
Yes
Additional info
Dimensions
90x108 mm
Weight
1010g
Lens Hood
BH-822
Package
Carton Box, Front Lens Cap, Instructions Manual, Lens Hood, Rear Lens Cap, Warranty Sheet
Warranty
2 Year Limited Warranty
Gallery
Video
Tokina AT-X 24-70 F2.8 PRO FX lens introduction
