Wide, Fast, Sharp

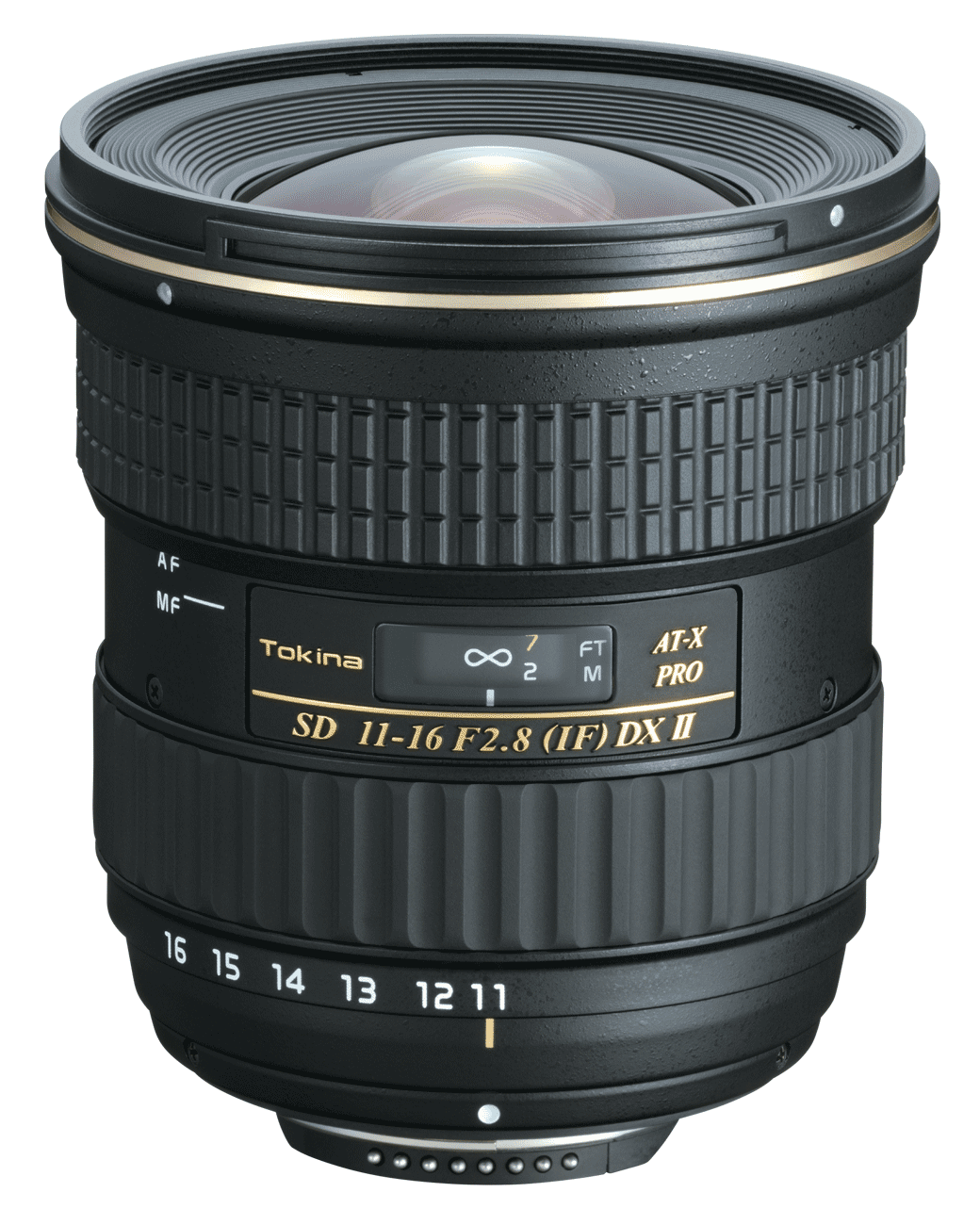

Tokina AT-X 116 PRO DX II (11-16mm f/2.8)

AT-X 116 PRO DX II

Wide Zoom
11-16mm f/2.8 AF
Mounts: Canon EF, Sony A, Nikon F
Add to compare
Instruction Manual   PDF, 1.27 Mb
APS-C
Sensor Size
2020
Discontinued in
77mm
Filter Size
550g
Weight
Accessories
Aspherical Optics Super Low Dispersion Glass Internal Focus System Multi-Coating One Touch Focus Clutch Mechanism
Instruction Manual   PDF, 1.27 Mb
Description
Specifications
Gallery
Video
Reviews
News
Ambassadors
Description

Tokina AT-X 116 f/2.8 PRO DX II (11-16mm) is an update to the widely popular and award winning Tokina AT-X 116 PRO DX (11-16mm f/2.8) lens.

The main update to this lens is in the Nikon mount, the AT-X 116 PRO DX II has an internal silent focusing motor to allow the lens to AF on Nikon bodies that do not have an AF drive gear and motor.

There have also been some adjustments made to the coating for slightly improved optical performance.

This compact ultra wide-angle zoom has a bright constant f/2.8 aperture make viewing and auto focus possible in lower light situations but still maintaining a reasonable size and weight.

Two Super-Low Dispersion glass elements and two aspheric glass allow the proprietary optical design to achieve excellent contrast and sharpness as well as controlling chromatic aberration.

Tokina’s exclusive One-touch Focus Clutch Mechanism allows the photographer to switch between AF and MF simply by snapping the focus ring forward for AF and back toward the lens mount for manual focusing. The lens is also designed to stand up to the rigors of daily use by photographers in a wide variety of shooting conditions and environments.

Other than the optical coating change there are no changes to the Canon mount. The AT-X 116 PRO DX II for Canon uses the same AF motor and AF drive system as the the previous model.

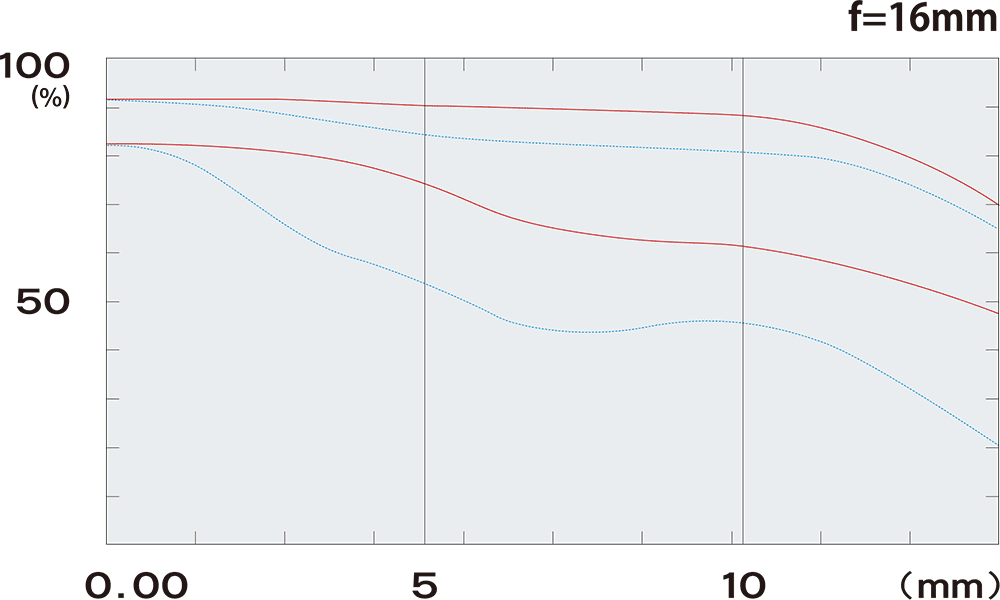

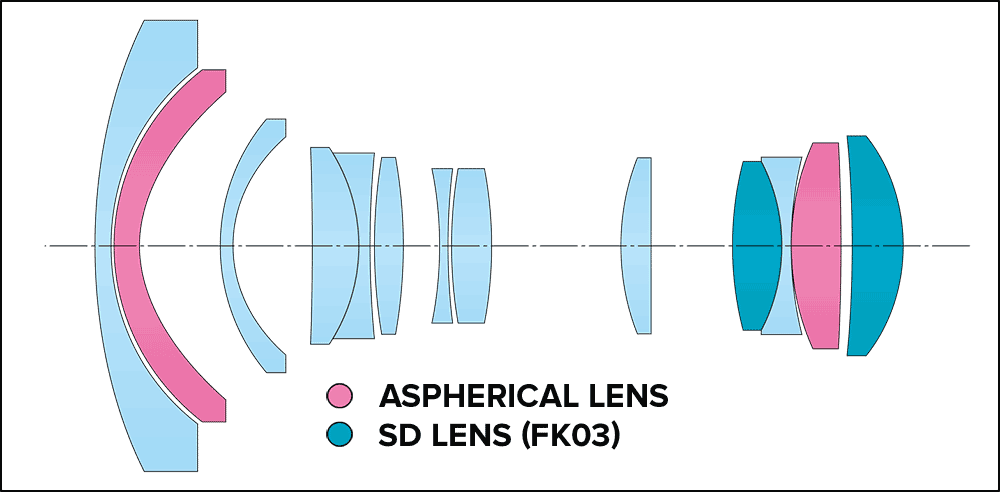

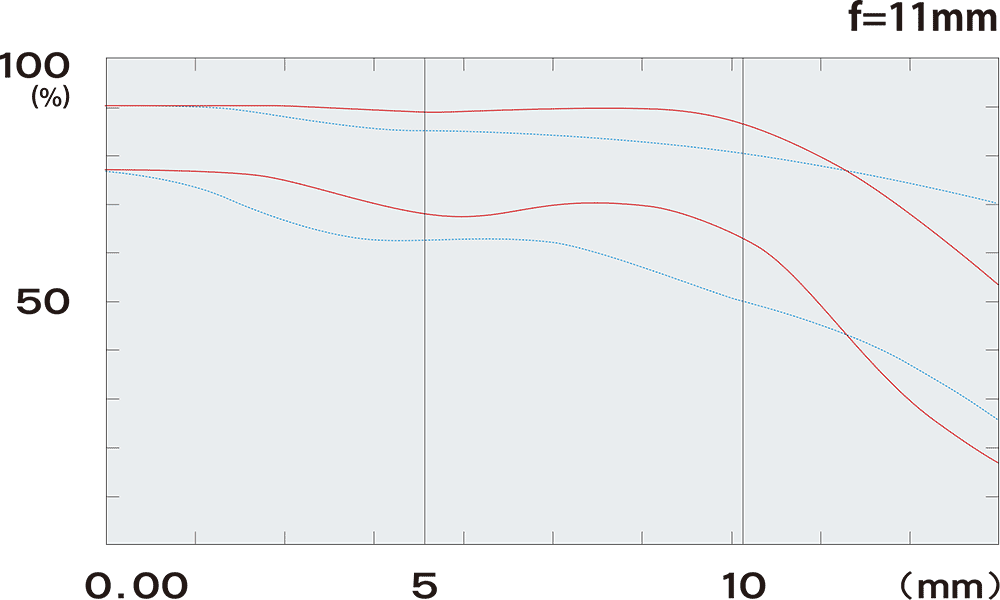

LENS CONSTRUCTION MTF CHART

Tokina AT-X 116 PRO DX II and Fuji X-T30 cinema combo footage
Created by Karim Yatrib

"Marrakesh" road trip video shot with Tokina AT-X 116 PRO DX II lens
Created by Karim Yatrib

Specifications
General info
Model
AT-X 116 PRO DX II
Model Description
Tokina AT-X 116 PRO DX II (11-16mm f/2.8)
Series
AT-X PRO
Type
Wide Zoom
Sensor Size
APS-C
Discontinued in
2020
Mount
Canon EF, Nikon F, Sony A
Color
Black
Country of Origin
Japan
Main specifications
Focal Length
11-16mm
Maximum Aperture
f/2.8
Minimum Aperture
f/22
Automatic Aperture
Yes
Angle of View
104°-82°
Minimum Focusing Distance
0.3m
Macro Ratio
1 : 11.6
Focusing Mode
Automatic
Manual Focusing Ring
Yes
Autofocus Switch
Clutch Ring
Focusing Type
Internal Focus
Filter Size
77mm
Coating
Multi-coating
Construction
Construction E/G
13 Elements in 11 Groups
Aperture Blades
9
Lens Hood
BH-77A
Electrical Contacts
Yes
Additional info
Dimensions
84x89 mm
Weight
550g
Package
Carton Box, Front Lens Cap, Instructions Manual, Lens Hood, Rear Lens Cap, Warranty Sheet
Warranty
2 Year Limited Warranty
