Description

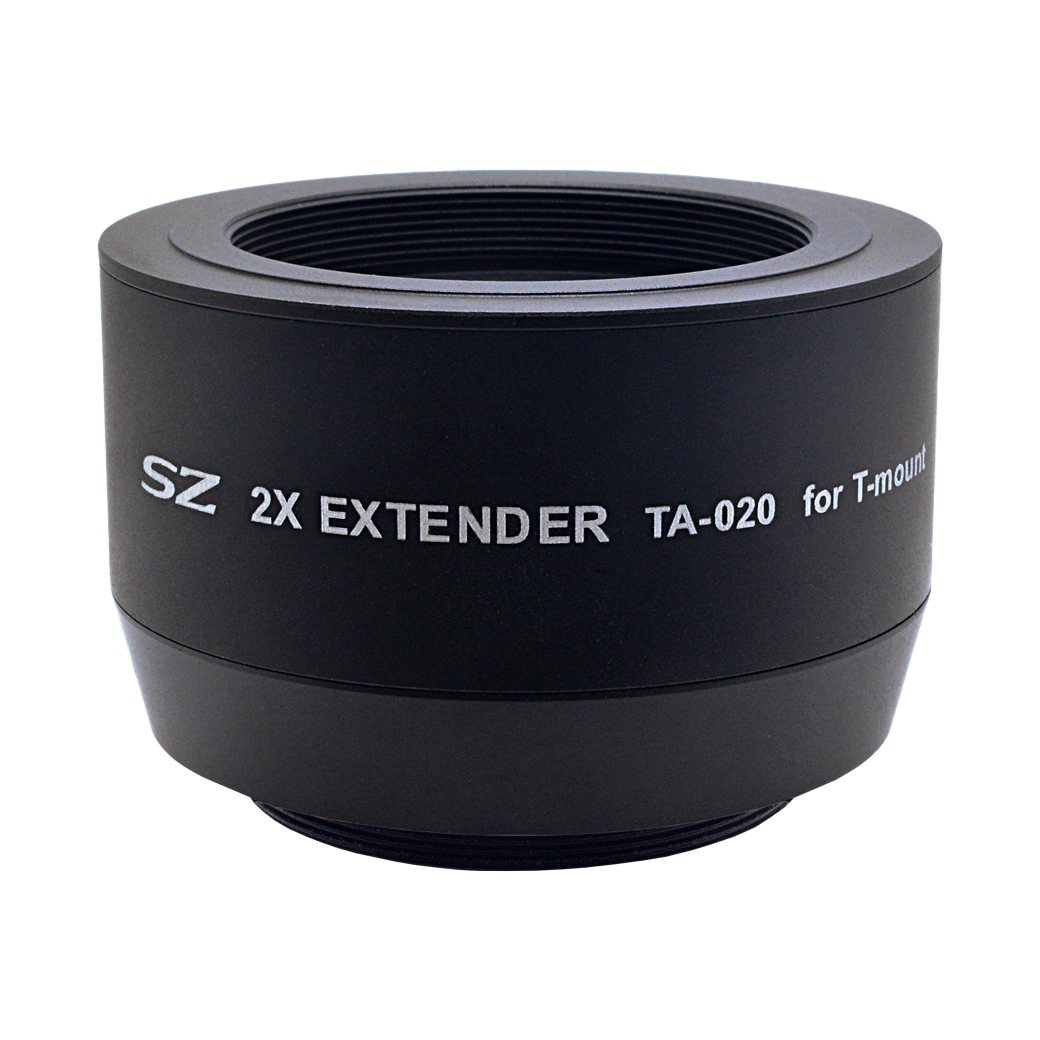

The Tokina SX 2X EXTENDER for T-mount (TA-020) is an universal optical teleconverter that extends the focal length of the lens 2 times. Thus, the focal length of the SZX SUPER TELE 400mm F8 Reflex MF turns into 800mm for full fframe cameras, 1200mm for APS-C sensor cameras and 1600mm for Micro 4/3 sensor cameras.
Tokina 2X Extender adopts T-mount standard and comes between the lens and mount adapter. Recommended for long distance shooting when the 400mm focal length is not enough to reach the desired magnification.
How to set up the SZX SUPER TELE 400mm F8 Reflex MF & 2X EXTENDER
| Model | SZ 2X EXTENDER for T-mount (TA-020) |
| Mount standard | Pitch 0.75mm, thread 42mm |
| Color | Black |
| Magnification | 2x |
| Exposure correction | 2 stops |
| Coating | Fully multi coated |
| Weight | 115g |
| Dimentions (length x diameter) | 41x60 mm |
Specifications
General info
Model
TA-020
Model Description
Tokina SZ 2X EXTENDER for T-mount (TA-020)
Type
Imaging Assist
Mount
T-mount
