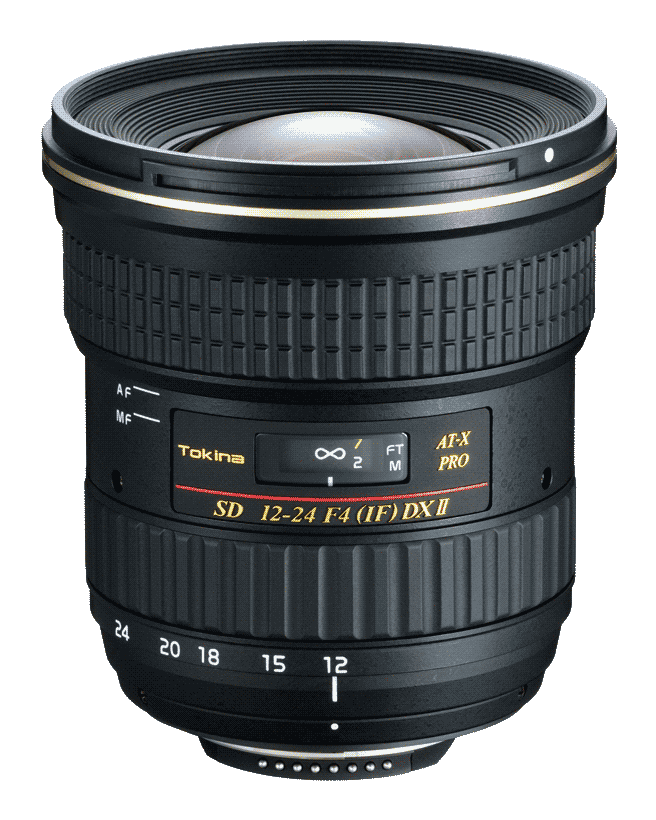

AT-X 124 AF PRO DX II

Wide Zoom
12-24mm f/4 AF
Mounts: Canon EF, Nikon F
Add to compare
Instruction Manual   PDF, 6.17 Mb
APS-C
Sensor Size
77mm
Filter Size
540g
Weight
Accessories
Aspherical Optics Super Low Dispersion Glass Internal Focus System Multi-Coating One Touch Focus Clutch Mechanism
Instruction Manual   PDF, 6.17 Mb
Description
Specifications
Description

The Nikon mount AT-X 124 AF PRO DX II has a built-in AF motor drive. The motor inside the lens was loaded onto the Nikon mount specification anew. The AF operates smoothly and quietly due to a DC motor that uses a new AF control gear assembly. With the built-in motor, the lens can be used in AF mode with the Nikon D60 and D40 and other silent wave bodies.

The Canon version of the lens already has a built-in AF motor and will benefit from the improved multi-coating.

The optical system of original AT-X 124 AF PRO DX won awards for its sharpness world-wide. This design was maintained in the AT-X 124 AF PRO DX II and improved with the introduction of new multi-coating system. The new multi-coating helps reduce reflections that can cause flare and ghosting even more than in the AT-X 124 AF PRO DX.

The AT-X 124 AF PRO DX II features the one-touch focus clutch mechanism. To use the one-touch focus clutch mechanism, move the focus ring forward, towards the front of the lens, for AF or back for MF. This allows for a fast and easy manual over-ride in difficult lighting situations.

Digital single-lens reflex DX lens dedicated to digital SLR cameras with APS-C sized sensors.


LENS CONSTRUCTION MTF CHART

Specifications
General info
Brand
Tokina
Product Family
Lens
Model
AT-X 124 AF PRO DX II
Model Description
Tokina AT-X 124 f/4 AF PRO DX II (12-24mm)
Series
AT-X PRO
Mount
Canon EF, Nikon F
Type
Wide Zoom
Color
Black
Country of Origin
Japan
Main specifications
Focal Length
12-24mm
Maximum Aperture
f/4
Minimum Aperture
f/22
Automatic Aperture
Yes
Manual Aperture Ring
No
Angle of View
99°-61°
Minimum Focusing Distance
0.3m
Macro Ratio
1:8
Focusing Mode
Automatic
Manual Focusing Ring
Yes
Autofocus Switch
Clutch Ring
Focusing Type
Internal Focus
Sensor Size
APS-C
Filter Size
77mm
Multi-coating
Yes
Construction
Construction Type
Glass
Construction E/G
13 Elements in 11 Groups
Aperture Blades
9
Electrical Contacts
Yes
Additional info
Dimensions
84x90 mm
Weight
540g
Lens Hood
BH-777
Package
Carton Box, Front Lens Cap, Instructions Manual, Lens Hood, Rear Lens Cap, Warranty Sheet
Warranty
2 Year Limited Warranty
